Industrial High-pressure Frame Filter

This is an industrial or commercial frame filter (plate oil-filter) for large scale oil production plant (oil manufacturing and oil refining process). Besides, it is also widely used to separate solid and liquid of each kind of suspension liquid. The application is wide, like Oil dewaxing, coal, petroleum, chemical industry, metallurgy, medicine, light industry, food, environmental protection and spinning, etc. The users can change the filter configuration to get the best using effect according to the specific using requirement.

Yes! I am Interested! Ask for Price

high pressure frame filter structure design

The Technical Parameter of the High-pressure Frame Filter

View the table below to learn about the detailed parameters of this high-pressure plate and frame oil filter.

(click here to go to 6LB series small oil filter press>>)

Item Technical index Item Technical index
Filter pressure            ( MPa ) ≤1.2 Filter temperature            ( 0C ) -10 ~ 90
Filter plate outer dimension  ( mm×mm×mm ) 800×800×60 Filter cake thickness            ( mm ) 30
Oil cylinder inside nominal diameter       ( mm ) 200 Oil cylinder theoretical route        ( mm ) 550
The highest pressing working pressure   ( MPa ) 25 The highest protection pressure of the hydraulic pressure    ( MPa ) 29
Feeding flange inside nominal diameter      DN65 Liquid outlet/washing flange inside nominal diameter DN40
Open flow liquid outlet diameter Z1/2” whole machine installed power       ( Kw ) 1.5


  1. When the filter temperature is over 600C, you should give a clear indication in the contract of purchase.
  2. When the filter area is 70m2 and 80m2,the oil cylinder theoretical route is 650mm.

Series of Technical Parameter

Filter Area ( m2 ) 60
Filter Board Number 59
Filter Chamber Volume  ( L ) 960
Mainframe Length( mm ) 5305
Mainframe Width ( mm ) 1200
Mainframe Height( mm ) 1230
Whole Machine Weight ( Kg ) 4060
Remark:The filter board number includes thrust strip and compressing plate.

Highlights of the Industrial Plate Oil-filter

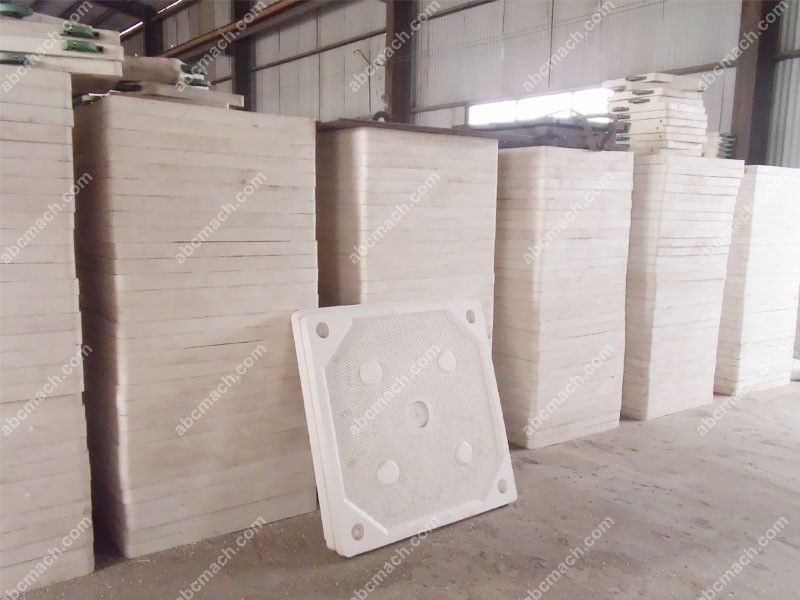

  • The material of the membrane filter board is the high quality of modified FRPP with special formula. High-temperature healed Diaphragm leaf is processed by the specialized numerical control equipment, so the surface is flat, the finish degree is high, the filter chamber leakproofness is good and the elasticity is strong.
  • The FRPP filter board has the advantages of high strength, light weight, corrosion resistance, acid and alkali resistance, Avirulent Insipidity, etc.
  • The filter adopts variable cross-section design, in which the filter part structure adopts plum blossom form of Conical dot structure, it can decrease the filter resistance effectively. The filter speed is fast and the filter liquor runner design is reasonable, and the filter liquor flows smoothly.
  • The filter mainframe adopts advanced rolled steel to weld, which is to support the filter board filter cake weight and the strong pressure produced during the filtering.
  • It takes hydraulic device as the power device of the pressing, loosening the filter board and pull the filter board automatically. The largest pressing intensity of pressure of the oil cylinder is 25MPa, and it adopts electro connecting pressure gauge to realize the automatic pressurizing function between the filter boards.
  • The largest pressure it can bear is 0.1MPa of filter pressure, that is to make sure the optimum condition of shaping filter cake to go on the pressure filtration.

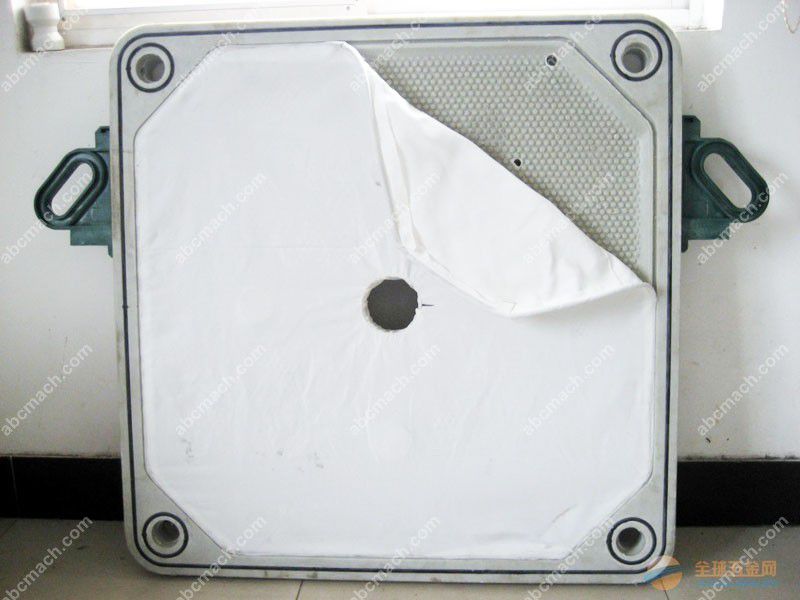

  • It adopts wall-hanging filter cloth structure, the liquid flows fluently through the filter cloth. The filter cloth surface is smooth and the viscosity degree of the filter cake is less.
  • It has many kinds of configurations like PLC autocontrol and relay control, etc. The operation is easy,safe and saving labors. By controlling the operating button on the control panel, you can finish the needed motion. It is equipped with safe devices to make sure the safety of the operators.
