vibrating sieve

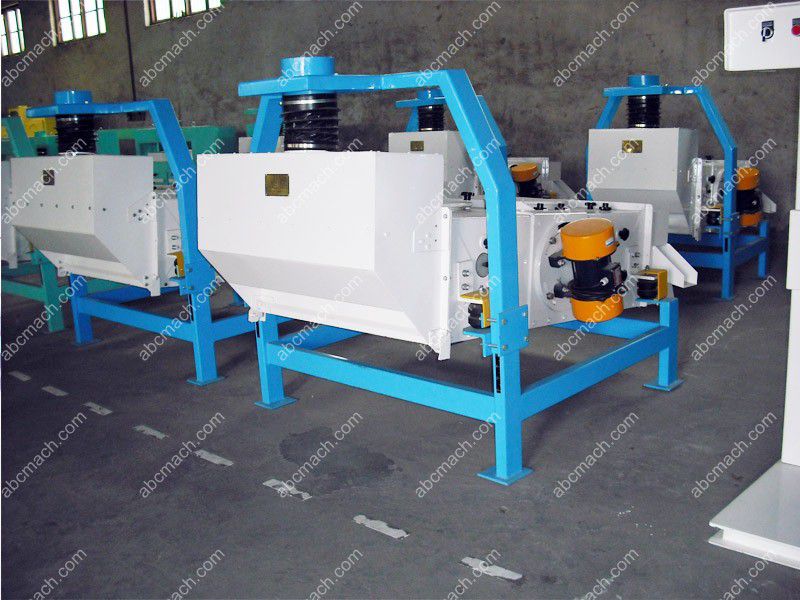

TQLZ series vibrating sieve is mainly used in wheat cleaning production to screen out big, medium, small and light impurities. The whole machine adopts special sealing design, avoiding dust problem. This series of cleaning sieve adopts high quality vibration motor and vibration damping rubber spring. It is known for low noise, steady operation, large capacity, low energy consumption and good cleaning effect. It also works well with vertical suction separator, so that to further clean the light impurity and dust through air-suction separating. It is ideal wheat cleaning machine.

This vibrating screen is widely used for precleaning and cleaning of wheat milling, flour milling, maize milling, oil processing, animal feed production and other grain separating and cleaning industries. By changing different sieves, this machine is capable of cleaning various materials such as wheat, corn, ice and oilseeds.

Yes! I am Interested! Ask for Price
Model Screen cloth size Capacity (T/Hour) Power
Precleaning Cleaning
TQLZ80×100 80×100 20 6 2×0.25 360 1440×1610×1455
TQLZ100×100 100×100 30 8 2×0.25 420 1640×1610×1455
TQLZ100×150 100×150 50 12 2×0.37 520 2140×1610×1455
TQLZ100×200 100×200 60 16 2×0.37 540 2640×1610×1455
TQLZ150×150 150×150 75 18 2×0.55 630 2140×2160×1455
TQLZ150×200 150×200 100 24 2×0.75 650 2640×2160×1455
TQLZ180×200 180×200 120 26 2×1.1 1000 2700×2480×1830

The structure of vibrating screen for grain cleaning is as shown in below figure. It is mainly composed of driving devices, feeding device, screen body, fame and other parts. It is generally used with vertical suction separator.

sieving machine structurer

1. Feeding Device
2. Feed Port
3. Adjustable Material Distribution Shedding Plate
4. Uniform Shedding Plate
5. Upper Screen
6. Lower Screen
7. Large Impurity Outlet
8. Air Separation Unit
9. Material Outlet
10. Light Impurity Outlet
11. Hollow Rubber Mat
12. Vibrating Motor
13. Adjustable Support
14. Discharging Choke Plate

vibration motor and frame
Vibration Motor and Frame

  Driving Device: It is driven by a vibrator. There are single-shaft vibrating screen and double-shaft vibrating screen. The amplitude of the sieve can be controlled by adjusting the relative position of the heavy block on motor shaft.

  Screen Body: It is composed of sieve box and its clamp device.

  Frame: The vibrating screen frame can be divided into hanging type and seat-type. Seat-type is featured of simple installation, low installation height and relatively stable performance. The support device is mainly composed of elastic elements which include spiral spring, blade spring and rubber spring.

  Feed Box: It is generally fixed with the screen box and be mounted on the rack through hollow rubber spring. The feed tube is fixed on the frame and connected with the feed box with soft rubber tube.

  Discharge Box: It is fixed on the screen body and vibrates with the screen body.

The Types of Vibrating Screen

Screening machine is also named as sieving machine. It has many different types and also has wide application. According to different purpose of use, it can be divided into grain screening machine, mineral screening machine and industrial sieving machine etc. According to different principle of work, it can be divided into eccentric vibrating screen, linear vibrating screen and inertia vibrating screen etc. This TQLZ series sieving machine belongs to wheat cleaning machine. Referring to grain cleaning equipment, there are plane rotary screens, cylinder precleaner and so on.
