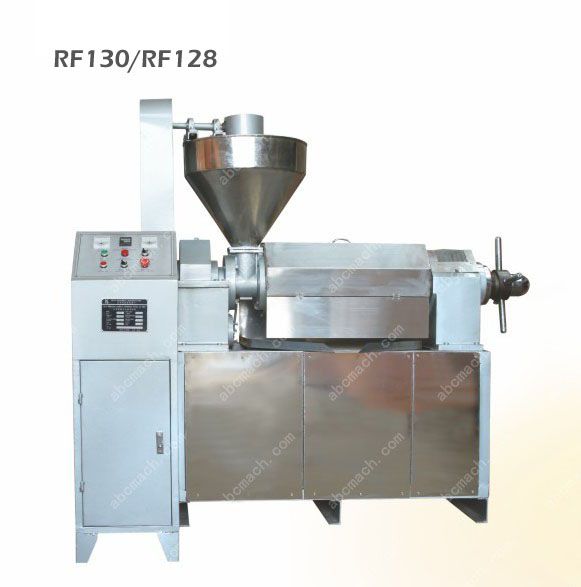

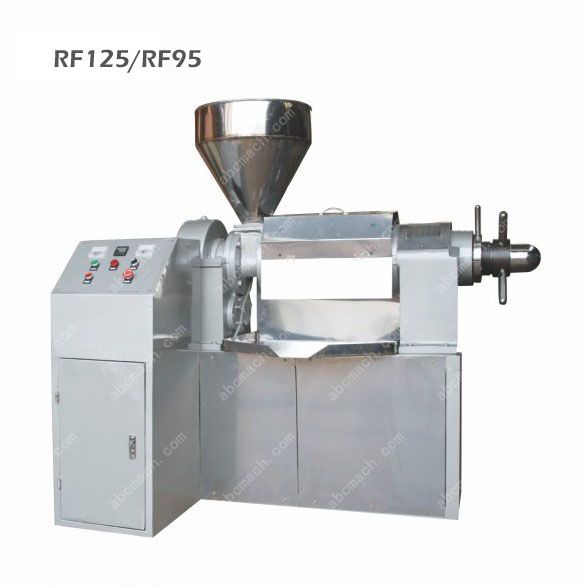

This is an advanced model of screw oil making machine. It has both the continuation of the various advantages of screw press,but also combines the following key featurers.
- The screw shaft and main pressing cage is internally installed electric heating pipes which can pre-heat the oil-bearing materials at the same time. Thi way can absolutely save the pre-heating time.
- The machine is equipped with electrical control cabinet, which can always monitor the temperature inside pressing cage, thereby improving the relability of heating and getting a higher oil yield.
- Not only the heat is fully utilized to achieve environmental protection, energy saving and health requirements, but also it can largely improve the oil quality.
- Oil tray and cover are made of stainless steel, more convenient to clean.
Compared to the traditional oil extraction machine, it is more energy-saving and environment protecting. Because of the compacted body design, it covers less space. So it is the first choice of small to medium scale oil mill factory and individual farmers or families.
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-130 |
450~500kg/h; 10~12Ton/hrs |
21.7kw | 1080kg | 2140*1140*1710mm |
| Power | Pressing Power | 18.5kw - 6P | ||
| Main Shaft Heating Power | 1.8kw - 220V | |||
| Pressing Cage Heating Power | 1.4kw - 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-128 |
300~375kg/h; 7~9Ton/hrs |
15kw | 830kg | 2000*1400*1950mm |
| Power | Pressing Power | 15kw - 6P | ||
| Main Shaft Heating Power | 1.8kw - 220V | |||
| Pressing Cage Heating Power | 1.4kw - 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-128-C |
300~375kg/h; 7~9Ton/hrs |
18.2kw | 830kg | 2000*600*1165mm |
| Power | Pressing Power | 15kw - 6P | ||
| Main Shaft Heating Power | 1.8kw - 220V | |||
| Pressing Cage Heating Power | 1.4kw - 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-125 |
210~300kg/h; 5~7Ton/hrs |
14.2kw | 770kg | 1900*1000*1610mm |
| Power | Pressing Power | 15kw - 4P | ||
| Main Shaft Heating Power | 1.8kw - 220V | |||
| Pressing Cage Heating Power | 1.4kw - 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-95 |
150~200kg/h; 3.5~5Ton/hrs |
13.6kw | 730kg | 1675*1000*1610mm |
| Power | Pressing Power | (7.5~11kw) - 6P | ||
| Main Shaft Heating Power | 1.8kw - 220V | |||
| Pressing Cage Heating Power | 0.8kw - 220V | |||
Screw oil press is a popular type of vegetable oil extraction machine, which is made up of feeder, press cage, gear box, stand, and screw axis and automatic temperature control system. In order to meet every customer's different requirement, our factory devoted to great efforts and innovation to make the products perfect. It is a stand-alone device, and can be connected with other machine to form a oil production line. What’s more, our machine is easier to make connection with other machine. So there is no need to consider that if you just buy our stand-alone device, you can not make them coordinated with your own device.
Honors of ABC Machinery
ABC Machinery is the leading supplier and manufacturer of vegetable seeds oil extraction machine and edible oil refininery equipment has been awarded with various quality authentications and certifications from government.
Superiorities
1. Designed by experienced engineers and the structure is reasonable and easier to control.
2. Produced by big factory, and the quality is in the high level.
3. It can effectively extract oil from various plant seeds and nuts, including soybeans, black seeds, rapeseed, flaxseed, walnuts, almond and more.
4. Produces high-quality oil cake that can be the best animal feed material or used for fertilizer.
Tips for Operating the Vegetable Oil Extraction Machine
Before operation: Firstly, you must ensure that every part of oil expeller machine is well assembled. Secondly, it is necessary to remove all the foreign impurities for high quality oil. Last, start the oil expeller machine for about 5 minutes to check whether it can operate smoothly and add some lubricating oil if necessary.
Operating: Firstly, you should feed the material uniform velocity. Secondly, the thick of oil cake can not be ignored. If it is too thick, the oil crops will not be sufficiently used. On the contrary, if it is too thin, it will wear the machine deeply.
After operation: You should cleaning the barrel and gap, in order to the next successful operation.
FAQs of Edible Vegetable Oil Extraction Process
Problem: No oil or yield efficiency is too low.
Solution: This maybe because the cage bar is too tight, or oil discharge seam is blocked by oil scrapes. If the seed is too dry or too wet, or the oil content is too low, it also will cause the problem. According to different oil corps, you should adjust the tight extend of cage bar. What’s more, you have to control the pressure of barrel.
Problem:Screw shaft is jammed and the machine can not work well.
Solution:This maybe caused by barrel blocking, impurities or asymmetry feed. Before you operate the machine, you had better check the parts and heat the barrel. Once machine happen this situation, you must turn down the machine, and clean the inner part of machine.
Problem:There is some wrong of feeder.
Solution:If the surface of pressing boil is not smooth, you can choose the emery cloth to polish it. If cage bar is wear, you can replace it. And if there is too much water in the oil crops, you can change the material or dry the material.
Daily maintenance
1. Clean the machine timely. When you finish your work, you should keep the machine clean, including inner and outer.
2. Avoid the dust into machine, especially the lubrication part. When the feed come into machine, you must pick the impurities out.
3. Maintenance. If you don not use the machine for a long time, the complete maintenance is needed.
